Welcome to Prince Fastener, your reliable partner in the крепежная промышленность. In the vast realm of fasteners, understanding the differences between various types is crucial for selecting the right product for your specific needs. Today, we will delve into the distinctions between truss head screws (commonly known as Large Head Screws) and Pan Head Screws. At Prince Fastener, we are committed to providing you with comprehensive and accurate information to help you make informed decisions. Our extensive experience and expertise in the fastener field enable us to offer high-quality products and professional solutions. Whether you are involved in construction, manufacturing, or any other industry that requires fasteners, our goal is to assist you in finding the ideal fastener for your project. So, let’s explore the unique characteristics, applications, and advantages of truss head screws and Pan Head Screws together, and discover how Prince Fastener can meet all your fastener requirements.

At Prince Fastener, we understand that choosing the correct fastener is crucial for the success and longevity of your industrial applications. You’re asking about the distinctions between truss head screws and pan head screws – let’s break down their key differences:

Head Shape: A Defining Characteristic

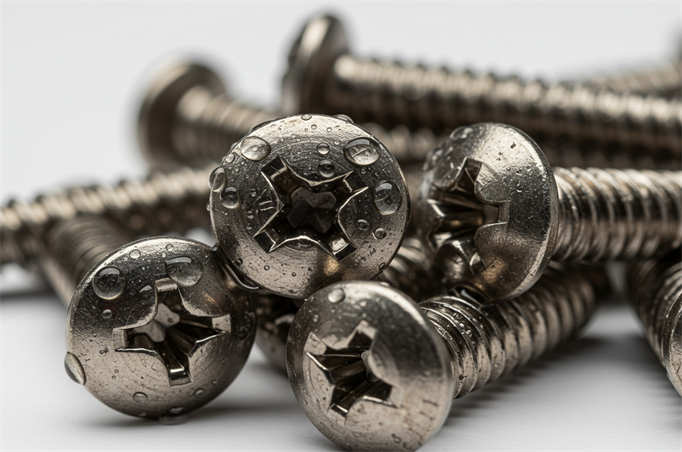

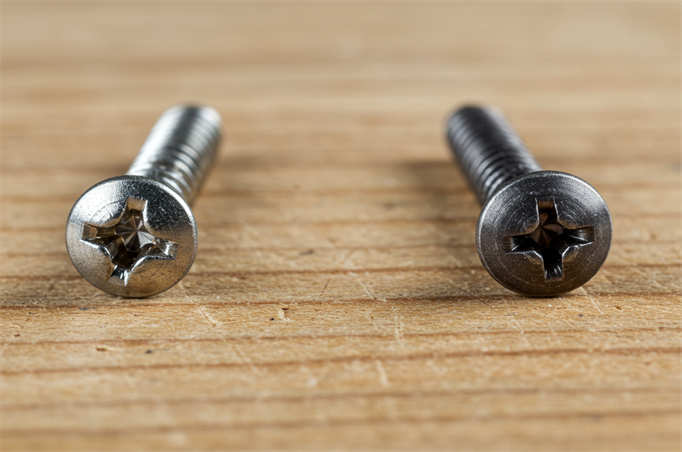

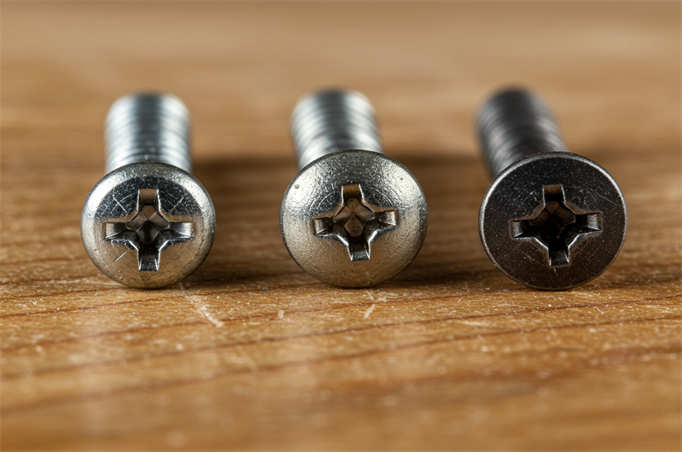

Truss Head Screws: These screws feature a distinctive low-profile, dome-shaped head with a wide bearing surface. You’ll notice a smooth, gradual transition from the head to the shank. This larger head diameter provides excellent clamping force and distributes pressure effectively across the fastening area.

Pan Head Screws: Pan head screws exhibit a flatter, slightly rounded top surface with a smaller diameter compared to truss heads. The underside of the head is typically flat, lacking the pronounced connecting curve seen in truss heads. Their overall profile is relatively low and flat.

Size and Proportion: Understanding the Dimensions

Truss Head Screws: Generally, truss head screws come in larger sizes with longer shanks and more substantial heads. For instance, in heavy-duty mechanical connections or areas requiring significant tension, you’ll often find truss head screws with diameters ranging from a few millimeters to ten millimeters or even larger.

Pan Head Screws: Pan head screws typically feature smaller dimensions. We often see them in the structural connections of smaller machinery and electronic products, with diameters usually within the millimeter range.

Application Scenarios: Where They Shine

Truss Head Screws: You’ll frequently find us recommending truss head screws for applications demanding a large bearing surface and stable connections. For example, in wood connections, their wide head prevents excessive pressure from damaging the material. In mechanical assembly, they excel at connecting components that must withstand significant shear and tensile forces, such as certain connection points in steel structures.

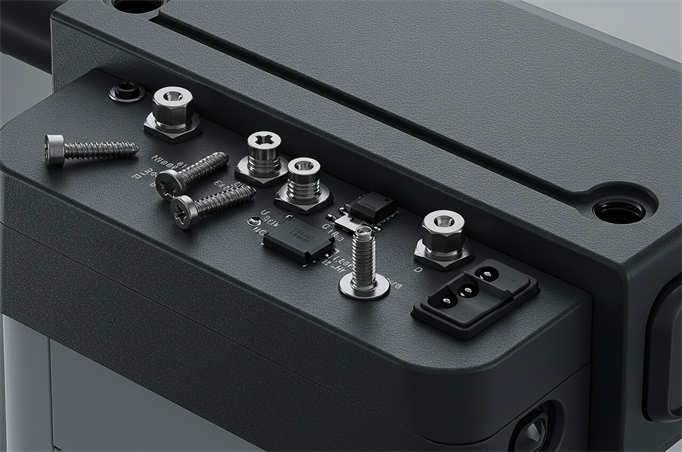

Pan Head Screws: We often see pan head screws used in the internal connections of small electronic devices, like securing components on mobile phones and computer motherboards. Their smaller head allows for easy application in tight spaces. Additionally, in surface connections where aesthetics matter, the flat head of a pan head screw sits flush, contributing to a more refined appearance.

Functional Characteristics: Performance Under Load

Прочность на разрыв:

Truss Head Screws: Due to their larger size, especially the greater shank diameter, truss head screws generally offer superior tensile strength. They maintain connection stability even under significant pulling forces.

Pan Head Screws: With their smaller dimensions, pan head screws have a relatively lower tensile strength. They are primarily suitable for connection scenarios with lighter loads.

Shear Strength:

Truss Head Screws: When subjected to shear forces, the larger head and thicker shank of truss head screws allow them to withstand considerable stress.

Pan Head Screws: While their shear strength is comparatively lower, proper design and installation, such as increasing the number of screws, can meet certain shear strength requirements.

Manufacturing Process: How They’re Made

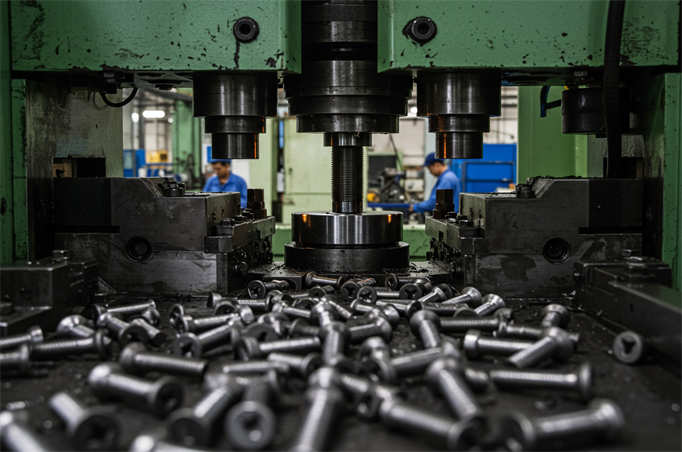

Truss Head Screws: Manufacturing truss heads requires precision, ensuring a smooth transition between the head and the shank to avoid stress concentrations. Given their larger size, we often employ hot-heading or cold-heading processes.

Pan Head Screws: Pan head screws are relatively straightforward to manufacture, often using cold heading techniques. Their head shape is easily formed.

Truss Head Screws vs. Pan Head Screws: Which Performs Better Outdoors?

Both truss head screws and pan head screws have their unique strengths, and their suitability for outdoor use depends on the specific conditions and requirements. Here’s a comparison for outdoor applications:

Material and Corrosion Resistance: Standing Up to the Elements

Truss Head Screws: We manufacture truss head screws from materials like carbon steel and stainless steel. Carbon steel truss head screws offer high strength but are susceptible to corrosion from rain and moisture in outdoor environments. Stainless steel truss head screws exhibit excellent corrosion resistance, withstanding salt spray and pollution, making them ideal for harsh outdoor conditions.

Pan Head Screws: Similar to truss heads, we produce pan head screws in carbon steel and stainless steel. Carbon steel pan head screws often receive surface treatments like galvanizing or nickel plating to enhance their corrosion resistance for general outdoor use. Stainless steel pan head screws boast superior corrosion resistance and широко используются in highly corrosive outdoor environments such as marine and chemical settings.

Head Design and Stress Distribution: Handling the Load

Truss Head Screws: Their large, low-profile dome head provides a significant contact area with the fastened material. Этот allows them to offer strong bearing capacity when resisting shear forces, making them suitable for outdoor connections that need to withstand substantial shear loads, such as outdoor timber structures and signpost fixings.

Pan Head Screws: The flatter, slightly rounded head of pan head screws has a smaller contact area compared to truss heads. They rely on the interaction between the screw threads and the fastened material for securement. They offer good tensile strength and are suitable for outdoor applications like securing components of outdoor equipment.

Ease of Assembly: Getting the Job Done

Truss Head Screws: The larger head of truss head screws can sometimes present limitations in outdoor areas with restricted installation space. However, the flat underside of the head provides good stability during installation, facilitating tool operation and force application.

Pan Head Screws: Their streamlined, low-profile head requires less vertical clearance for installation, making them more suitable for confined outdoor environments. Furthermore, the design of pan head screws allows for easy engagement with various tools, both manual and automated, enabling quick and efficient assembly.

Appearance and Application Scenarios: Considering Aesthetics

Truss Head Screws: The larger and more prominent head of truss head screws can stand out on the surface of connected materials, potentially detracting from the overall aesthetic appeal in outdoor locations where appearance is важно. However, for large outdoor structures or equipment where structural integrity and stability are paramount и aesthetics are secondary, truss head screws are an excellent choice.

Pan Head Screws: The more discreet head design of pan head screws sits flush with or slightly above the surface of the connected material, offering a cleaner and more aesthetically pleasing finish. We often recommend pan head screws for exterior facades and electronic equipment housings where appearance is a consideration.

Cost Considerations: Balancing Performance and Budget

Truss Head Screws: Generally, truss head screws are larger and require more material, which can lead to a slightly higher cost compared to pan head screws made from the same material and using the same manufacturing processes.

Pan Head Screws: Their smaller size and lower material consumption typically result in a lower production cost. Using pan head screws in large-scale outdoor projects can contribute to significant savings on fastener expenses.

Truss Head Screws vs. Pan Head Screws: Which Offers Superior Durability for Outdoor Equipment Mounting?

When it comes to securing outdoor equipment, both pan head screws and truss head screws offer distinct advantages, and their durability hinges on several factors. Here’s a detailed analysis:

Material and Corrosion Resistance: The Foundation of Longevity

Pan Head Screws: We often manufacture pan head screws from stainless steel and carbon steel. Stainless steel pan head screws provide excellent resistance to corrosion from rain and moisture. For example, 304 stainless steel pan head screws perform exceptionally well in damp environments, making them widely used for outdoor equipment. Carbon steel pan head screws typically undergo surface treatments like zinc or nickel plating to enhance their corrosion resistance.

Truss Head Screws: Similar to pan heads, we produce truss head screws in carbon steel and stainless steel. While carbon steel truss head screws are prone to rusting, surface treatments like hot-dip galvanizing can improve their corrosion resistance. Stainless steel truss head screws offer superior corrosion resistance, making them suitable for demanding outdoor environments.

Overall Design and Fastening Effectiveness: Ensuring a Secure Hold

Pan Head Screws: Their flatter, slightly rounded head sits flush with or slightly above the surface of the connected components, providing a clean appearance after installation. The shank design of pan head screws delivers excellent clamping force. Compared to other screw types, they are less likely to loosen or detach over time.

Truss Head Screws: The low-profile, dome-shaped head with a gradual transition to the shank and a larger bearing surface provides significant contact with the fastened material. This design offers robust bearing capacity when resisting shear forces, making them ideal for outdoor connections that must withstand substantial shear loads.

Assembly and Maintenance: Practical Considerations

Pan Head Screws: The straightforward head design facilitates easy tool engagement, simplifying assembly and disassembly. Often, pilot holes are not required, streamlining the installation process. The shank design of these screws provides good clamping force, reducing the risk of loosening due to vibration.

Truss Head Screws: Installation may require more careful alignment due to the larger head. Improper installation can potentially lead to head damage and a less secure connection. Однако, once правильно installed, the larger head and shank can provide higher tensile and shear strength.

Cost Implications: Balancing Budget and Performance

Pan Head Screws: Due to their simpler design and lower material usage, pan head screws generally have a lower production cost. Этот can translate to significant cost savings for large-scale outdoor equipment installations.

Truss Head Screws: Their larger size and greater material requirements typically result in a slightly higher cost compared to pan head screws.

Application Scenarios: Matching the Fastener to the Task

Pan Head Screws: We often recommend pan head screws for outdoor equipment where corrosion resistance and aesthetics are важно, particularly for smaller electronic devices, electrical equipment housings, and outdoor applications with visual considerations.

Truss Head Screws: Truss head screws are more suitable for larger outdoor equipment, steel structure connections, and other applications requiring high shear strength.

In general, for securing outdoor equipment, if corrosion resistance and a clean appearance are primary concerns and the equipment doesn’t need to withstand extreme shear forces, stainless steel pan head screws are often the better choice. However, if the equipment requires high shear or tensile strength and installation space is not a major constraint, truss head screws are a more appropriate selection.

Thank you for joining us on this journey of exploring truss head screws and винты с плоской головкой. At Prince Fastener, we take pride in our diverse product range and our ability to cater to various customer needs. We understand that each project has its own set of requirements and challenges, and that’s why we are dedicated to providing not just fasteners, but tailored solutions that ensure the success and durability of your work. Our truss head screws and Pan Head Screws are manufactured to the highest standards of quality, guaranteeing optimal performance in different environments and applications. Whether you are working on an outdoor construction project, assembling mechanical equipment, or producing electronic devices, we have the right fastener for you. We invite you to explore our extensive collection and experience the Prince Fastener difference. Contact us today to learn more about our products and services, and let us help you build a stronger, more reliable future.
